Creating the perfect underfloor heating system for your home or commercial premises is only a step away with our complete warm water underfloor heating system. With sufficient pipe length to cover 60m², has all the high quality products and parts that you would expect.
The Pipe & Clip Underfloor Heating System is simple to install, the Pex layer pipe is clipped into the insulation layer before the screed is either trowel applied or liquid screed is poured.
We always recommend that the pipe is cut accurately and reamed out to give a good connection with the fittings, preventing a leak.

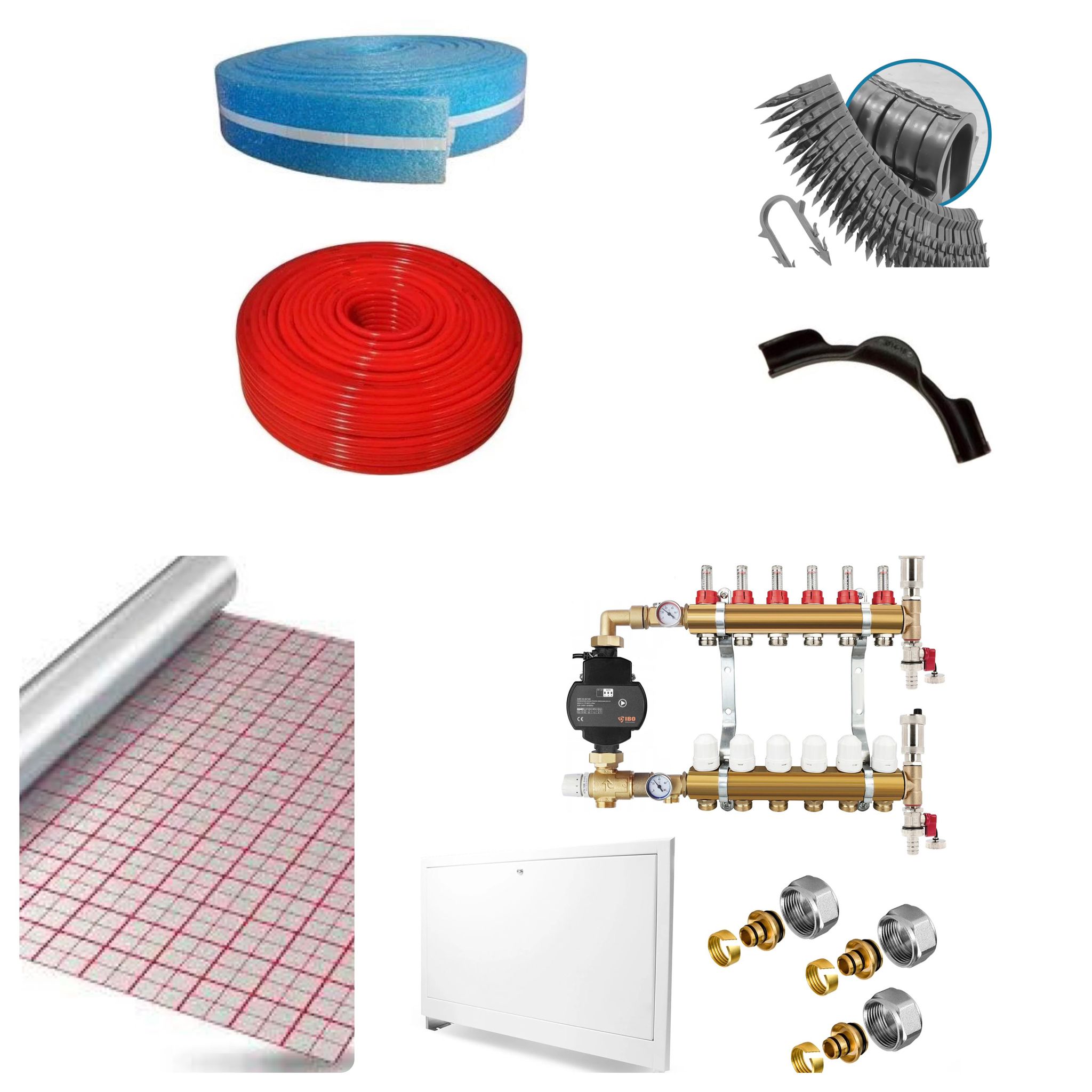

Heating Kit – 60.0m²:
- 400 metres 16mm pipe
- “A” Rated Low Energy bio amg pump and thermomix automatic blending valve
- 6 Port Manifold – High quality nickel plated brass with dualmix manifold assembley
- 2 x Water drain/fill valves
- 2 x Thermometer Ball Valves
- 2 x Auto Bleed Valves
- 12 x 16mm Pipe Connectors (Eurocone)
- 1500 High Grip Pipe Clips
- 50m Edge Insulation
- aluminium foil 60m2
Floor Coverage: 60.0m² – 80.0m²
– 60.0m² @ 150mm spacing for areas of high heat loss (conservatories)
– 80.0m² @ 200mm spacing for primary heating (living room, bathroom, bedrooms)
