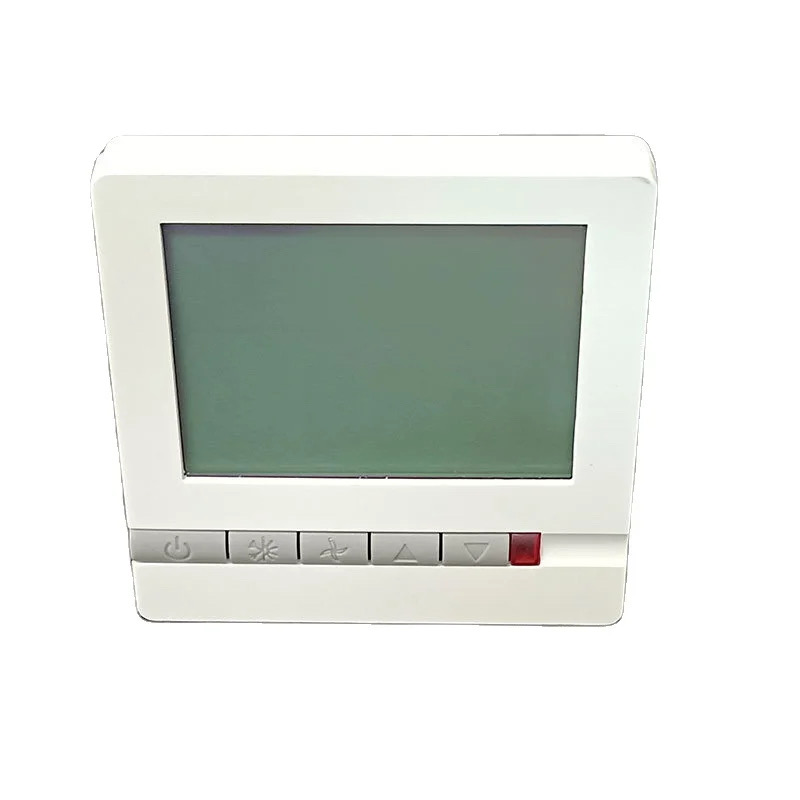

Multi Zone Crate Water Kits are designed for multiple zones and whole home applications such as new builds or whole home renovations using Eggcrate Allowing for individual room control using multiple thermostats for each system to set different temperatures and times accordingly.

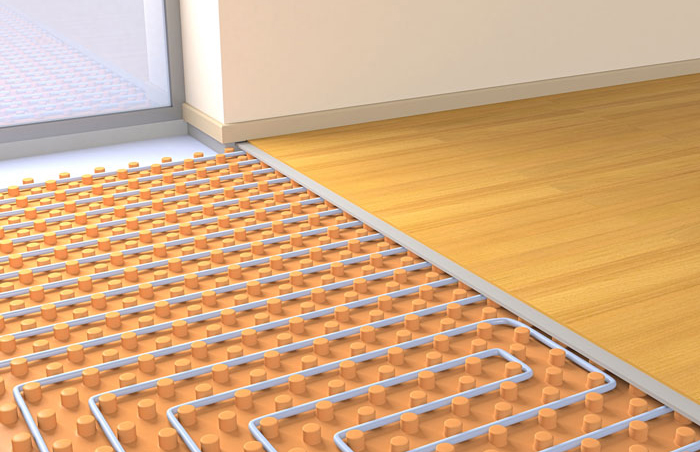

For ease of install each kit is supplied with enough Egg Crate to cover the floor area of the kit. These provide a grid for laying your pipework in any configuration such as counterflow, spiral and serpentine with each nib at a uniform 50mm spacing
Each system is designed based on 20m2 per zone and one controller per zone.
For example – 80m2 = 4 zones = 4 thermostats. For bespoke systems please contact sales.
Water Underfloor heating systems are the homeowner and installers perfect choice as each kits comes complete with everything you need in a box with a multiple of different choice of thermostat control. Systems comes with easy-to-follow installation guides and all pipework comes with lifetime (50yr) guarantee.Innovative-heating also has a fully qualified technical support team available for on-site queries.
These Mulit zone water underfloor heating kits are designed to cover the m2 in pipework when spaced at 200mm spacings NB. Pipe is not provided to get to and back from the heat source.
Water Kits include products, from pipework, pump, thermostats, manifolds etc as to ensure that seal of quality and approval and reassure the lifetime guarantee that comes with systems. There are many similar systems on the market that are simply unbranded or OEM parts.
Kit Content Comparison Table
This table shows exactly what you’ll get in the box based on your chosen kit size.
| Kit Size (m2) | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 |
|---|---|---|---|---|---|---|---|---|---|
| Isolation/Ball Valve | |||||||||
| Egg Crate | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 |

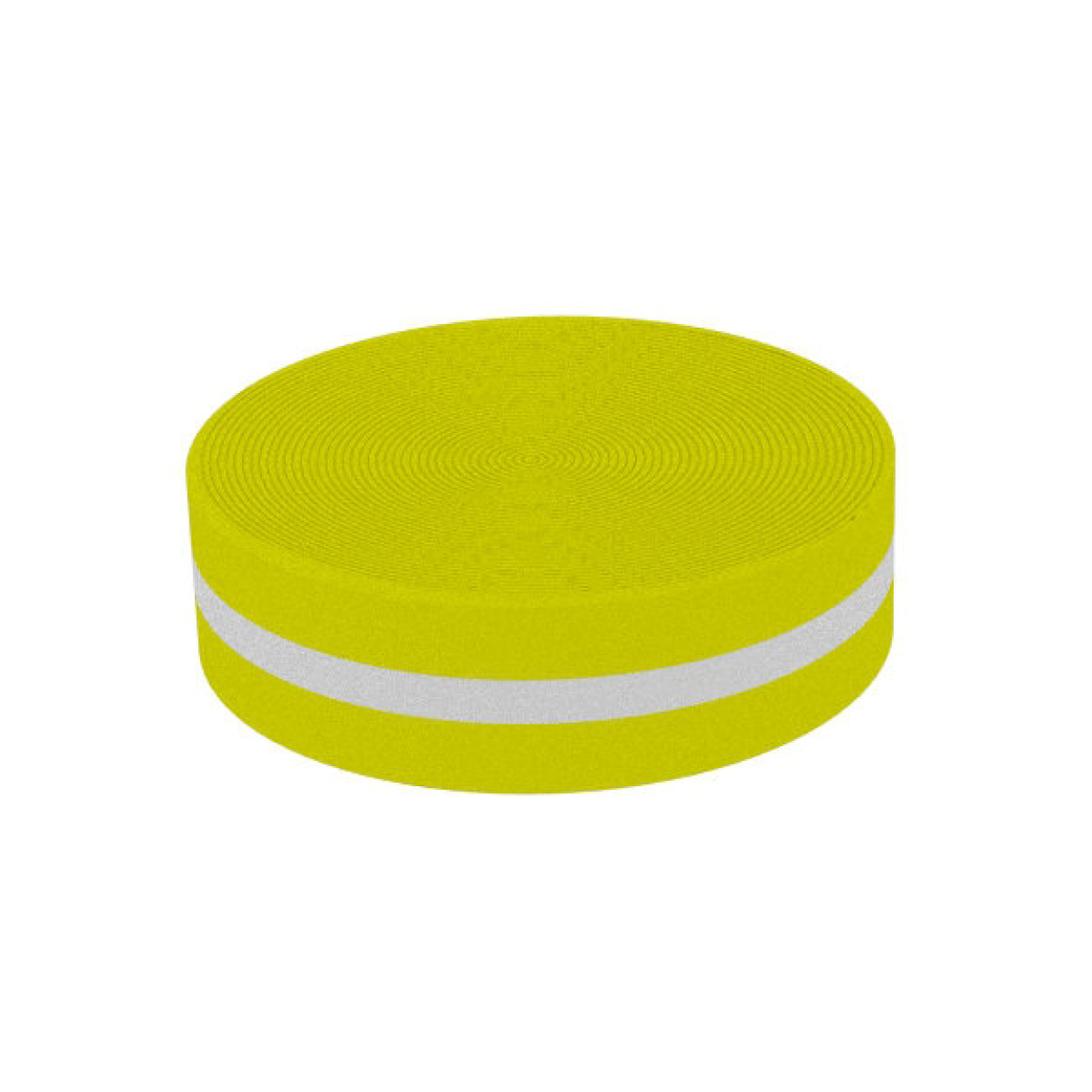

| Edge Insulation | 1 | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 4 |
| Eurocones (16mm) | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| Fill & Drain Valves | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Manifold Pump & Mixing Valve Unit | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Pipe Length (m) | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 |
| Pipe Cutters | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Pipe Rounding Tool | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| Thermal Actuator | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Manifold Ports | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |

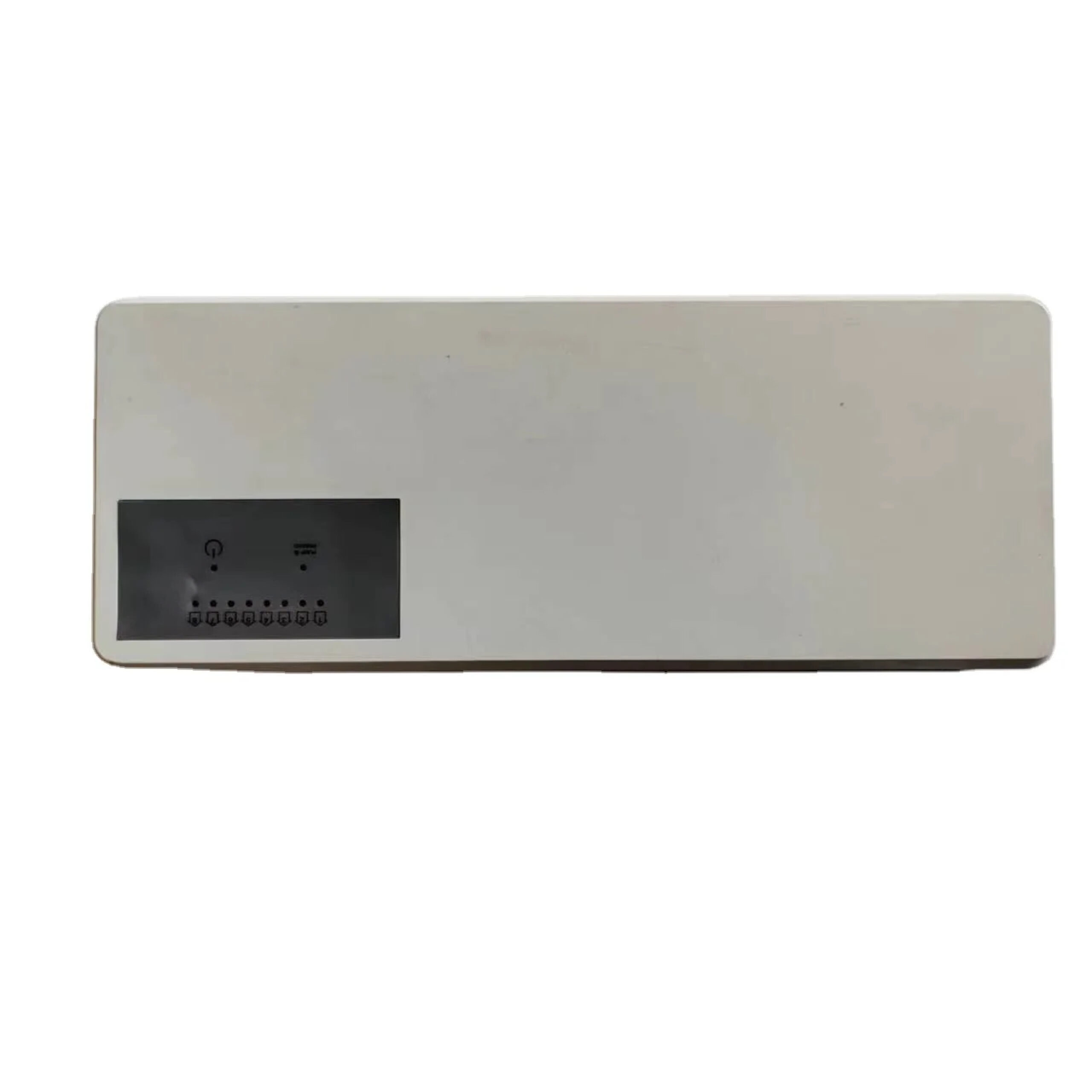

| 4 Port Wiring Centre | |||||||||
| 8 Port Wiring Centre | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
